NEW RELEASE

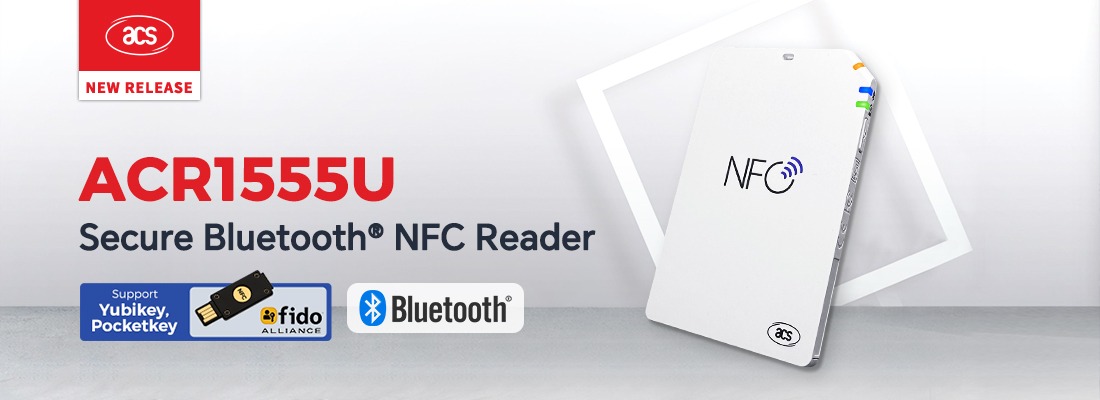

ACR1555U
Secure Bluetooth® NFC Reader



ACR1555U Secure Bluetooth® NFC Reader is designed to facilitate on-the-go smart card and NFC applications. It combines the latest 13.56 MHz contactless technology with Bluetooth® connectivity.

ACR1555U supports ISO 14443 Type A and B smart cards, MIFARE®, FeliCa®, and most NFC tags and devices compliant with ISO 18092 standard. This makes ACR1555U ideal for a broad range of solutions, such as hands-free verification for physical and logical access control, and inventory tracking. ACR1555U has two interfaces: Bluetooth 5.2 (also known as Bluetooth Low Energy or BLE) for pairing with mobile devices, and USB Full Speed for PC-linked operation. Additionally, it can read/write at a speed of up to 848 kbps for contactless smart card and NFC device access.

With a compact design and a rechargeable Lithium-ion battery for power, ACR1555U is extremely portable and convenient for use anytime, anywhere with most Bluetooth-enabled smartphones and tablets.

Mobile PC-Linked USB Bluetooth Battery Powered Contactless Reader NFC Reader SAM Slot(s) Firmware Upgradeable
  • Support Bluetooth® 5.2
    • Supports Bluetooth® HID mode
    • Support Bluetooth AES-128 encryption
    • High speed transmission up to 2Mbps
  • Support various contactless card type
    • ISO 14443 Type A & B Parts 1-4
    • ISO 15693
    • ISO 18092 NFC
    • NFC 5 Types of NFC tags
    • MIFARE®, FeliCa
  • Performance
    • Read/Write ISO 14443 A & B speed of up to 848 kbps
    • Read/Write ISO 15693 speed of up to 26 kbps
  • Support various NFC features
    • Card Reader/Writer Mode
    • Card Emulation Mode
    • Support Keyboard Emulation mode
  • Security
    • One ISO 7816 Standard SAM slot for improved security
  • Support USB Firmware Upgrade
  • Compatibility
    • Support for all major operating systems
      • Windows®、Linux®、macOS、IOS、iPadOS、Android™
Physical Characteristics
Dimensions (mm)
  • 93 mm (L) × 58 mm (W) × 6 mm (H)
  • 94.1 mm x 60.2mm x 9.0 mm (with Card Holder)
Weight (g)
  • 31.5 g ± 1.0 g (Card Reader)
  • 39.7 g ± 1.0 g (with Card holder)
  • 23.9 g ± 5.0 g (USB cable)
Bluetooth Interface
Protocol
  • Bluetooth® (Bluetooth Low Energy / Bluetooth 5.2)
  • Bluetooth AES-128 encryption
Speed 1 Mbps and 2 Mbps
USB Interface
Protocol USB CCID
Connector Type USB Type-C
Power Source Rechargeable Lithium-ion Battery (charging through USB)
Speed USB Full Speed (12 Mbps)
Cable Length 1m, Detachable
Contactless Smart Card Interface
Standard
  • ISO 18092 NFC
  • ISO 14443 Type A & B
  • ISO 15693, MIFARE®
  • FeliCa
Protocol
  • ISO 14443-4 Compliant Card, T=CL
  • MIFARE® Classic Card, T=CL
  • ISO 15693
  • ISO 18092
  • FeliCa
SAM Card Interface
Number of Slots 1
Standard ISO 7816 Class A, B and C (5V, 3V, 1.8V)
Protocol T=0; T=1
Built-in Peripherals
LED Bi-colors LED ( Red and Green) x 1, Blue LED x 1 and Orange LED x 1
Buzzer Monotone
Other Features
Other Features Other NFC Features:
  • Smart Card Reader/Writer
  • Keyboard Emulation
  • Card Emulation
Firmware Upgrade Supported
Certifications/Compliance
Certifications/Compliance
  • Standards
    • Bluetooth® BQB
    • USB CCID
    • PC/SC
    • Microsoft® WHQL
    • J-LIS
  • Regulatory / Environmental
    • CE
    • FCC
    • IEC/EN 62368
    • MIC
    • TELEC
    • UKCA
    • VCCI
    • RoHS
    • REACH
    • WEEE
Device Driver Operating System Support
Device Driver Operating System Support
  • USB and Bluetooth HID mode
    • Windows®
    • Linux®
    • macOS® 10.7 or above
    • Android™ 4.3 or above
    • iOS 12.0 or above
    • iPadOS 16.0 or above
  • Bluetooth
    • Android™ 4.3 or above
    • iOS 12.0 or above
    • iPadOS 16.0 or above
Drivers for ACR1555U
Bluetooth Interface OS Support
Android BLE EVK (SmartCardIO)  1.69 MB
Version 0.6.1
29-Nov-2024 		Android 4.4 or above
*With Extended APDU Support
iOS BLE EVK (SmartCardIO)  1.04 MB
Version 0.6.1
22-Nov-2024 		iOS 9.0 or above
*With Extended APDU Support
USB Interface OS Support
PC/SC Driver Installer  2.82 MB
Version 1.1.11
28-Mar-2024 		Linux®
PC/SC Driver Installer  279.71 KB
Version 1.1.11.1
26-Aug-2024 		macOS®
PC/SC Driver Installer  4.77 MB
Version 1.0.5.0
09-Feb-2024 		Windows®
Android EVK  1.58 MB
Version 1.1.7
16-Feb-2024 		Android™ 3.1 or above
Configuration Tool  34.44 KB
Version 100
15-Nov-2023 		Windows®
*For UID Keyboard Emulation Mode Only
